Plasma Flame CNC Cutting Machine Cutting Torch Holder Z-axis Torch Lifter Holder 100mm DC24V

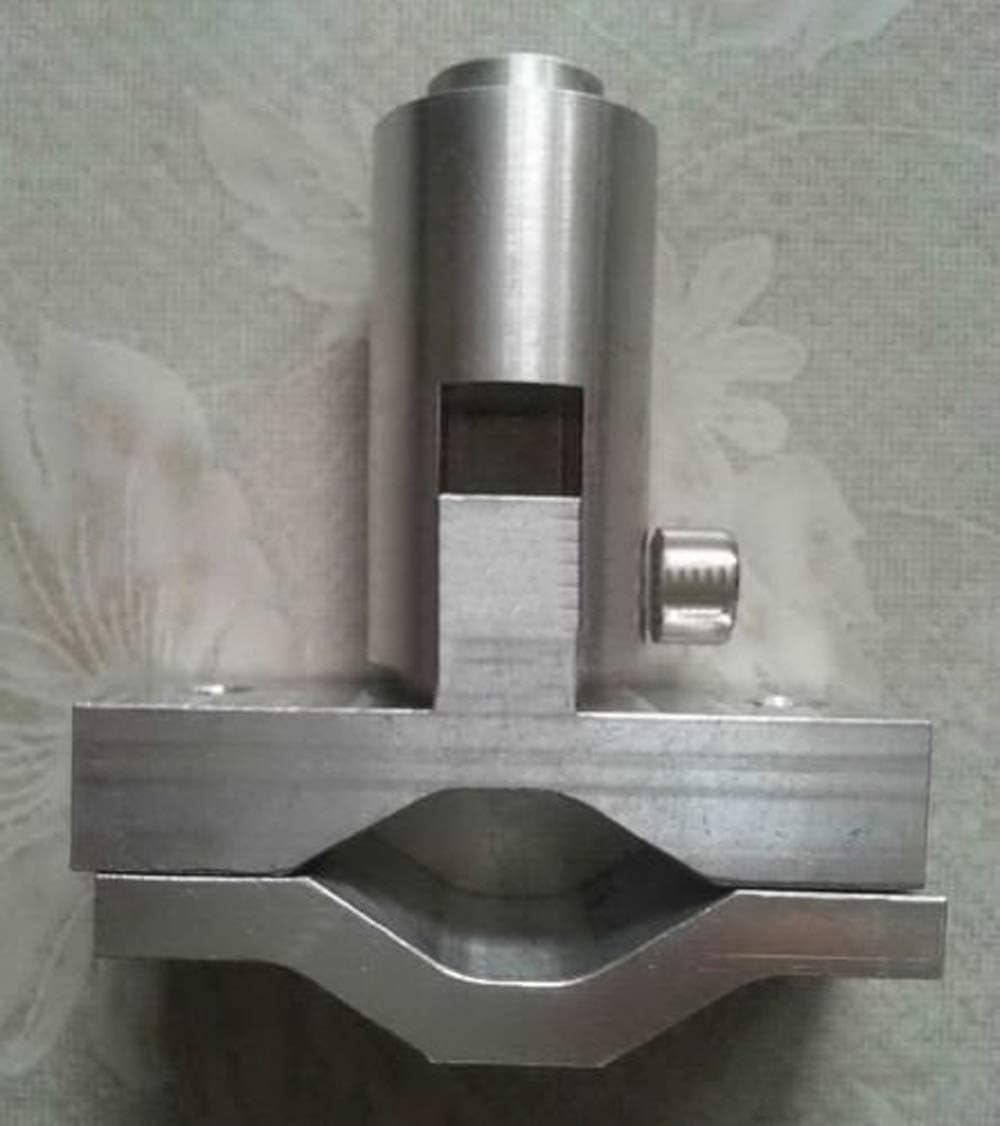

Air control plug definition:1 foot --D +; (motor positive)2 feet --D -; (motor negative)3 feet --Zero; (positioning normally open output)4 feet --COM; (positioning normally open output)Note: Built-in limit (reverse diode)Parameter1. T-304 stainless steel screw2. Includes jig (torch range 12mm-38mm)3. Lift inside a plasma arc positioning4. Aluminum body, the upper and lower aluminum sheet thickness of 8mm, forming a processing center5. Four-core plug6. Color: black spray housing7. Working stroke: 100mm8. Working voltage: DC24V9. Weight: about 1.7 kg10. Bearing weight: 3 kg11. Dimensions: length 320 * W 80 * H 6012. Mounting Hole Size Length: center distance between two holes 40mm Package Included:1 x Set of CNC Cutting Torch Holder

• This flame/plasma cutting machine Z-axis torch lifter is driven by DC gear motor to lift the torch up & down.
• The most important part of the device, which is to keep the machine's cutting accuracy and to support plasma arc positioning function, is equipped with NPN proximity switches.
• This lifter's machenical movement part is made of Taiwan TBI ballscrew, standard linear shaft(SFC) & linear slider on the ends; torch clamper/holder is made of bearing steel, and fasterned by linear sliders, which is to ensure the lifter movement's stability & verticality.
• Convenient to install, work simple, improving the work efficiency.
• Application: Portable/desktop light duty CNC flame/plasma cutting machine.
