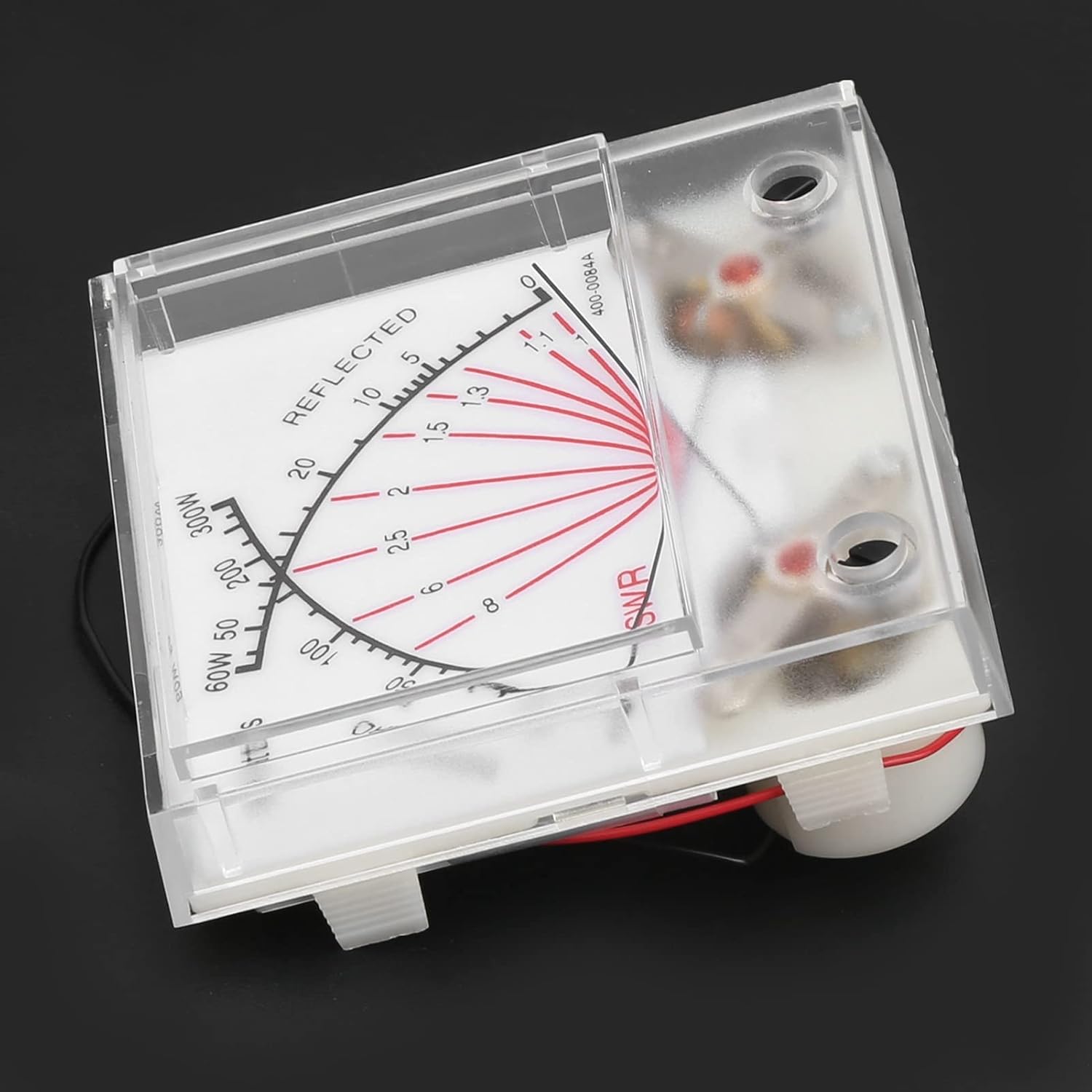

Haowecib SWR Wattmeter, Sturdy Operation is Simple SWR Meter for Industry for Manufacturing
4.3 (61 items)
Limited Time SaleUS$18.41 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211723808 | Release Date | 2026/04/04 | List Price | US$12.27 | Model Number | 211723808 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Feature:1. Equipped with backlight, convenient for reading. The display can be clearly seen even at night.2. Adopts high quality ABS material, and sturdy, ‑ shock, can be used for a long time.3. Equipped with pointer dial, high accuracy, can directly display the measurement results。4. The test range is wide, 60/300W power test, the maximum current sensitivity is 200uA±8%.5. The control layout is convenient and the operation is simple. The electric meter is installed vertically.Spec:Item Type: SWR Power MeterMaterial: ABSColor: As shown in the pictureMaximum Current Sensitivity: 200uA±8%Internal DC Impedance: 750Ω±8%Insulation Resistance: 50MΩFriction: ±1mm / 0.04inPointer Length: 49mm / 1.93in±1mm / 0.04inPointer Width: 0.45mm / 0.02in±0.05mm/0.002inPointer Swing Direction: From left to rightMeter Installation Position: VerticalBacklight Board: White backgroundBacklight: White lightType 1: Two LEDs in series "6V, 20mA", connect a resistor, 620Ω1/2WType 2: Two LEDs in series "6V, 20mA", connect a resistor, 1.3KΩ1/2WPackage List:1 x SWR Power Meter
| Brand Name | Bantian |
|---|---|
| Manufacturer | Haowecib |
| Power Source | Electric |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
