Battery Internal Resistance Tester with ESR Measurement Function HR530
5.0 (97 items)
Limited Time SaleUS$22.68 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211161176 | Release Date | 2026/04/04 | List Price | US$15.12 | Model Number | 211161176 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

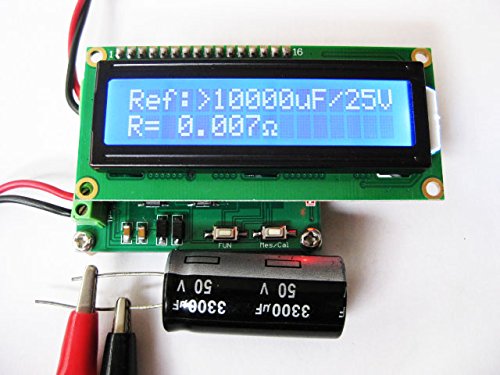

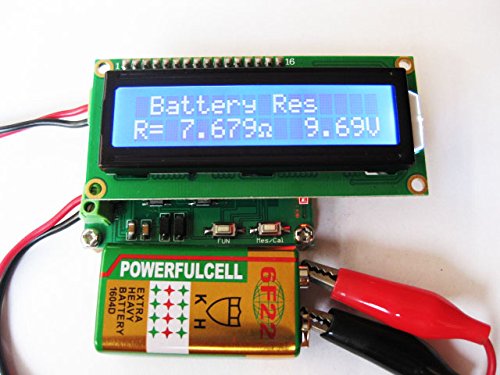

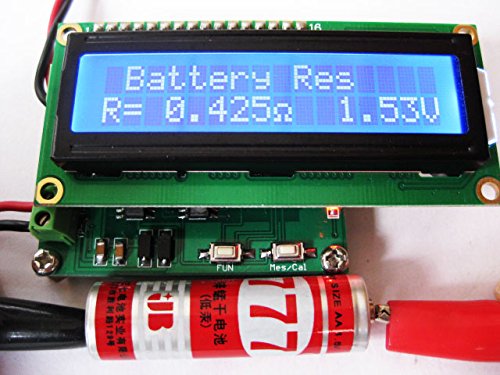

1、 Overview: HR530 is a small ESR milliohmmeter, which can measure the ESR value of electrolytic capacitor and (measure the battery internal resistance and battery voltage value), and can also measure the resistance milliohmmeter. It is simple to use 2、 Product application: ● Measure the ESR value of electrolytic capacitor ● Measure the resistance value ● Measure the battery internal resistance and battery voltage 3、 Technical parameter table: SN Item Parameter Unit Remarks 1 Measuring resistance range: 0.001 ～ 120 Ω 2 Resistance measurement resolution 1 m Ω 3. Measure the battery voltage 0~25 VDC 4 Measure the battery voltage resolution 0.01 VDC 5 Output measurement frequency 100K Hz 6 Working voltage 7~12 VDC 7 Working current<50 mA 8 Working temperature - 40 ℃~65 ℃ ℃ 9 Storage temperature - 40 ℃~65 ℃ 10 Size 57 * 45 * 20 mm L X W X H
- Measuring resistance range: 0.001 ～ 120 Ω
- Resistance measurement resolution 1 m Ω
- Measure the battery voltage 0~25 VDC
- Working voltage 7~12 VDC
- Working current<50 mA
| Color | Green |
|---|---|
| Brand Name | YILUBAO |
| Manufacturer | YILUBAO |
| Included Components | see details |
| Warranty Description | see details |
